Self Drilling Screw

Self Drilling Screw Manufacturer

Self-Drilling Screws are specialized fasteners designed with an integrated drill point that allows drilling, tapping, and fastening in a single operation.

As a professional manufacturer of fasteners, DC-Screws offers comprehensive solutions for self-tapping screws.

Add to Inquiry

Philips Pan Head Sheet Metal Tek Self Drilling Screw

The Philips Pan Head Sheet Metal Tek Self-Drilling Screw is designed for fast, reliable fastening in sheet metal and light steel applications. It is widely used in HVAC systems, steel structures,

Add to Inquiry

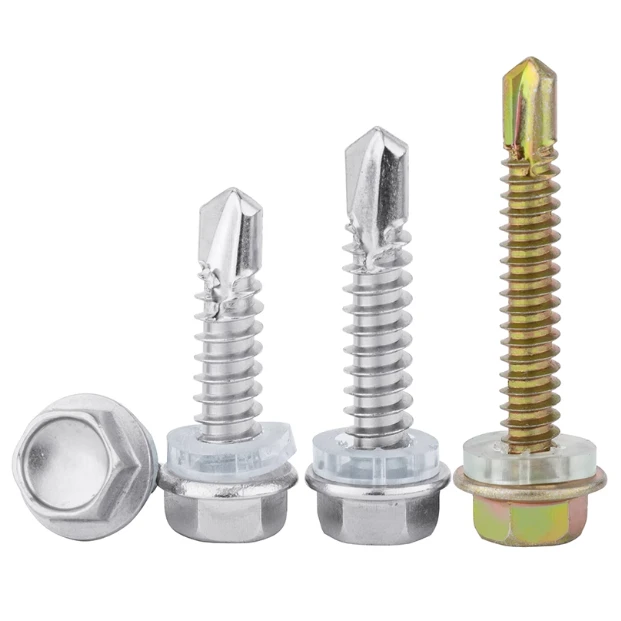

Hex Head Self-Drilling Screws with PVC Washer

Our hex head self-drilling screws with integrated PVC washers deliver an all-in-one solution for drilling, tapping, and fastening. Specifically designed for metal roofing, steel structures, and

Add to Inquiry

Wafer Head Self Drilling Screw for Metal

Wafer head self drilling screw is designed for fastening steel and sheet metal without pre-drilling.The integrated drill point completes drilling, tapping, and fastening in a single operation,

Product Specifications

Product Name:	Bolt
Standard:	ASTM/ANSI,EN ISO,AS
Material	Stainless steel :SS201, SS202, SS303, SS304, SS316, SS316L, SS904L, F593
Material	Carbon steel:Q195, Q235, 35K, 45K, 42Grmo, 307A, 307B, A325, A394, A490, A449
Finishing	Plain, Black, zinc-plated, HDG, Nickel, Gr, Dacromet.
Production	M2-M24:Cold Froging,M24-M100 Hot Forging
Process	Machining and CNC for Customized fastener
Certs	Material Certs and inspection certs are available
Samples	Free Samples for standard fastener

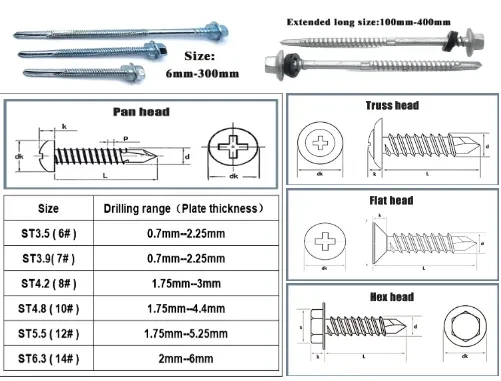

Size

Reliable Fastening Performance

Performance Indicator	Benefit
Drilling Efficiency	Reduces installation time
Thread Forming Capability	Creates secure connections
High Torque Strength	Supports heavy-duty applications
Corrosion Resistance	Extends service life
Vibration Resistance	Prevents loosening
Consistent Hardness	Ensures reliable drilling performance

Typical Applications

Self-drilling screws are particularly valued in metal-to-metal fastening applications because they eliminate separate drilling operations and improve installation efficiency.

Steel structure construction

Prefabricated buildings

Wall cladding installation

HVAC ductwork systems

Industrial equipment assembly

Agricultural buildings and storage facilities

Quality Control

Our zero-defect quality framework integrates continuous electronic inspection and mechanical testing:

High-Speed Optical Sorting:

100% automated vision inspection removes defective screws (e.g., blunt tips, off-center heads, damaged threads).

Drilling Speed & Capacity Audit:

Automated testing measures the time and downward force needed to penetrate standard test sheets.

Torque-to-Failure Analysis:

Destructive rotation testing determines maximum torque strength and strip resistance.

Coating Thickness & Salt Spray Test:

Microscopic check of coating thickness plus continuous salt spray testing.

Flexible Packaging & Global Logistics

Packaging Options:

Industrial carton packaging
Bulk packaging
Pallet packaging

Shipping Methods:

Sea Freight
Air Freight
Railway Transportation

Lead Time

Quantity (pieces)	1 - 2000	20001 - 10000	10001 - 20000	> 20000
Lead time (days)	12	18	22	To be negotiated

Certifications

Our production processes and mechanical fasteners comply with global structural safety frameworks:

ISO 9001:2015 Quality Management Systems certification.

CE Marking (EN 14566 / EN 14592) compliance for structural metal-to-metal and roofing fastener applications within the European economic framework.

SGS Material Validation Reports establishing chemical composition and mechanical breakdown consistency.

FAQ

Q: What materials can self-drilling screws fasten?

A: They are commonly used for steel, aluminum, sheet metal, wood, and certain composite materials.

Q: Are self-drilling screws suitable for roofing projects?

A: Yes. They are widely used in metal roofing, cladding, and steel building construction.

Q: Do you provide corrosion-resistant coatings?

A: Yes. Zinc-plated, galvanized, Ruspert-coated, and stainless-steel options are available.

Q: How do you ensure drilling performance?

A: Through precise drill-point forming, heat treatment control, and drilling performance testing.

Q: Are self-drilling screws suitable for automated installation equipment?

A: Yes. Our products are designed for both manual and automated fastening systems.

Q: What is your payment term?

A: TT,LC or Negotiable.

As one of the most professional self drilling screw manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please feel free to wholesale bulk high quality self drilling screw in stock here and get pricelist from our factory. Customized orders are welcome.
